EasyHL7RichTextbox

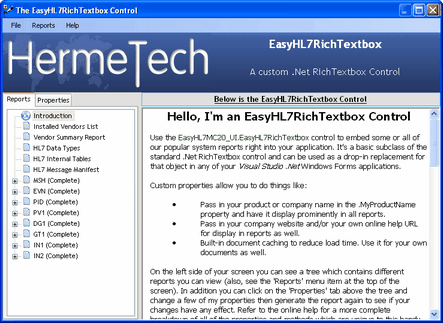

The EasyHL7RichTextbox control is a subclass of the standard .Net RichTextbox Windows Forms control. It contains all of the standard properties and methods as the regular RichTextbox control plus some unique features which we have added for HL7 interface software developers which might make it worth your while to take a look at. In addition to our custom reports which are embedded in the control and can be called with the custom methods, we've also added some interesting "caching" features which you might find useful in working with your own RichText reports or documents.

Name: AboutString

Data Type: String (Read Write)

Description: [Reserved for future use]

Name: IncludeVendorInstructions

Data Type: Boolean (Read Write)

Description: Applicable only to HL7 Data Type reports. If TRUE then the "Instructions" (if present) will be displayed in reports.

Name: CacheSize

Data Type: Long (Read Only)

Description: Total size of all objects in the cache

Name: IncludeWebsiteInReports

Data Type: Boolean (Read Write)

Description: If TRUE then the Website (if set) will be displayed in most embedded system reports.

Name: CachedReportCount

Data Type: Integer (Read Only)

Description: Number of named documents held in the report cache

Name: IsVendorError

Data Type: Boolean (Read Only)

Description: If TRUE then there is a problem with the EasyHL7Vendor property. Typically just that it hasn't been set, but also can be true if the EasyHL7Vendor is not opened (see OpenVendor) or if the license is invalid.

Name: EasyHL7Vendor

Data Type: EasyHL7MC40.HL7Vendor (Read Write)

Description: An open HL7Vendor object (see OpenVendor) to use when creating reports

Name: LastVendorError

Data Type: String (Read Only)

Description: The Error message associated the EasyHL7Vendor property.

Name: HelpURL

Data Type: String (Read Write)

Description: A URL to your online help. If passed it will be displayed in most embedded system reports.

Name: MaxHL7FieldRawSize / MaxHL7SegmentRawSize

Data Type: Integer (Read Write)

Description: In the embedded HL7 Message reports these settings determine how much "raw" HL7 data to display before truncating it.

Name: IncludeHelpURLInReports

Data Type: Boolean (Read Write)

Description: If TRUE then the HelpURL (if set) will be displayed in most embedded system reports.

Name: MyProductName

Data Type: String (Read Write)

Description: The name of your product. If passed it will be displayed in most embedded system reports.

Name: IncludeProductNameInReports

Data Type: Boolean (Read Write)

Description: If TRUE then the MyProductName (if set) will be displayed in most embedded system reports.

Name: ReportingEnabled

Data Type: Boolean (Read Only)

Description: If False then there is either a problem with the EasyHL7Vendor property or some other error which will prevent all embedded report methods from running. Typically this is just that the EasyHL7Vendor property hasn't been set, but also can be true if the EasyHL7Vendor is not opened (see OpenVendor) or if the license is invalid.

Name: IncludeVendorAnnotations

Data Type: Boolean (Read Write)

Description: If TRUE then Vendor Annotations (if present) will be displayed in certain Vendor reports.

Name: Website

Data Type: String (Read Write)

Description: The URL for your company or product website. If passed it will be displayed in most embedded system reports.

Name: AddCurrentContentToCache

Parameter 1: CacheID (String) - Identifying key to use when retrieving the document

Returns: N/A - Nothing

Description: Will add the current .RTF content of the control to the report cache with the key CacheID.

Name: GenerateTableReport

Parameter 1: intTableID (Integer) - The ID of the internal HL7 Table

Parameter 2: CacheID (Optional String) - Identifying key to use when retrieving the document

Returns: Boolean

Description: Generates a report showing the contents of the HL7 internal table with ID intTableID (if it exists in the vendor definition opened in the EasyHL7Vendor property). If passed the report will be added to the report cache with the key CacheID. This means that subsequent calls to this method with the same CacheID will simply retrieve the report from the report cache.

Name: AddReportToCache

Parameter 1: CacheID (String) Identifying key to use when retrieving the document

Parameter 2: strReportRTF (String) A RichText string

Returns: N/A - Nothing

Description: Will add strReportRTF to the report cache with the key CacheID.

Name: GenerateTableSummaryByName

Parameter 1: CacheID (Optional String) - Identifying key to use when retrieving the document

Returns: Boolean

Description: Generates a report listing the HL7 internal tables sorted by Table Name. If passed the report will be added to the report cache with the key CacheID. This means that subsequent calls to this method with the same CacheID will simply retrieve the report from the report cache.

Name: ClearCachedReports

Returns: N/A - Nothing

Description: Clears all cached reports. NOTE: Call this method in your FormClosed or FormClosing Event.

Name: GenerateTableSummaryByTableID

Parameter 1: CacheID (Optional String) - Identifying key to use when retrieving the document

Returns: Boolean

Description: Generates a report listing the HL7 internal tables sorted by Table ID. If passed the report will be added to the report cache with the key CacheID. This means that subsequent calls to this method with the same CacheID will simply retrieve the report from the report cache.

Name: ClearVendorErrors

Returns: N/A - Nothing

Description: Clears the Error state of the control.

Name: LoadReportFromCache

Parameter 1: CacheID (String) - Identifying key to use when retrieving the document

Returns: Boolean

Description: Will load a document/report which has been previously added to the report cache with the key CacheID.

Name: GenerateAllVendorsReport

Parameter 1: CacheID (Optional String) - Identifying key to use when retrieving the document

Returns: Boolean

Description: Generates a report listing all EasyHL7 Vendor definitions in the current VendorPath. If passed the report will be added to the report cache with the key CacheID. This means that subsequent calls to this method with the same CacheID will simply retrieve the report from the report cache.

Name: MessageManifestReport

Parameter 1: oHL7Message (EasyHL7MC40.EasyHL7Message) - EasyHL7Message object containing an HL7 message.

Parameter 2: CacheID (Optional String) - Identifying key to use when retrieving the document

Returns: Boolean

Description: Will load a document/report which has been previously added to the report cache with the key CacheID.

Name: GenerateVendorDetailReport

Parameter 1: CacheID (Optional String) - Identifying key to use when retrieving the document

Returns: Boolean

Description: Generates a detailed report for the vendor definition opened in the EasyHL7Vendor property. If passed the report will be added to the report cache with the key CacheID. This means that subsequent calls to this method with the same CacheID will simply retrieve the report from the report cache.

Name: MessageSegmentReport

Parameter 1: obSegment (EasyHL7MC40.HL7MessageSegment) - HL7MessageSegment object extracted from an EasyHL7Message object using the GetSegment() method.

Parameter 2: CacheID (Optional String) - Identifying key to use when retrieving the document

Returns: Boolean

Description: Generates a report showing the data contained in a particular segment of an HL7 message. The data is overlaid against the known HL7 segment structure contained in the HL7Vendor definition.If passed the report will be added to the report cache with the key CacheID. This means that subsequent calls to this method with the same CacheID will simply retrieve the report from the report cache.

Name: GenerateVendorSummaryReport

Parameter 1: CacheID (Optional String) - Identifying key to use when retrieving the document

Returns: Boolean

Description: Generates a summary report for the vendor definition opened in the EasyHL7Vendor property. If passed the report will be added to the report cache with the key CacheID. This means that subsequent calls to this method with the same CacheID will simply retrieve the report from the report cache.

Name: MessageSegmentReportDataOnly

Parameter 1: obSegment (EasyHL7MC40.HL7MessageSegment) - HL7MessageSegment object extracted from an EasyHL7Message object using the GetSegment() method.

Parameter 2: CacheID (Optional String) - Identifying key to use when retrieving the document

Returns: Boolean

Description: Generates a report showing the data contained in a particular segment of an HL7 message. The data is overlaid against the known HL7 segment structure contained in the HL7Vendor definition. Unlike the MessageSegmentReport, this report only displays HL7 fields in the segment which actually contain some data in at least 1 component.

Name: GenerateHL7DataTypesReport

Parameter 1: CacheID (Optional String) - Identifying key to use when retrieving the document

Returns: Boolean

Description: Generates a report listing all of the HL7 data types contained in the vendor definition opened in the EasyHL7Vendor property. If passed the report will be added to the report cache with the key CacheID. This means that subsequent calls to this method with the same CacheID will simply retrieve the report from the report cache.

Name: RemoveReportFromCache

Parameter 1: CacheID (String) - Identifying key to use when retrieving the document

Returns: Boolean

Description: Will remove a document/report which has been previously added to the report cache with the key CacheID.

Name: GenerateHL7DataTypeSummary

Parameter 1: strDataType (String) - The HL7 Data Type Name (XPN, ST, TS, etc)

Parameter 2: CacheID (Optional String) - Identifying key to use when retrieving the document

Returns: Boolean

Description: Generates a report listing the details for the HL7 data type strDataType (if it exists in the vendor definition opened in the EasyHL7Vendor property). If passed the report will be added to the report cache with the key CacheID. This means that subsequent calls to this method with the same CacheID will simply retrieve the report from the report cache.

Name: RetrieveReportFromCache

Parameter 1: CacheID (String) - Identifying key to use when retrieving the document

Returns: String

Description: Will retrieve a document/report which has been previously added to the report cache with the key CacheID. While the similar LoadReportFromCache() will load the cached report into the RTF of the control, this method simply returns the RTF (string) content of the report.

Name: GenerateSegmentDetailReport

Parameter 1: strSegmentName (String) - The name of the HL7 segment (MSH, PID, PV1, etc)

Parameter 2: CacheID (Optional String) - Identifying key to use when retrieving the document

Returns: Boolean

Description: Generates a detailed report for the HL7 segment strSegmentName (if it exists in the vendor definition opened in the EasyHL7Vendor property). If passed the report will be added to the report cache with the key CacheID. This means that subsequent calls to this method with the same CacheID will simply retrieve the report from the report cache.

Name: GenerateSegmentSummaryReport

Parameter 1: strSegmentName (String) - The name of the HL7 segment (MSH, PID, PV1, etc)

Parameter 2: CacheID (Optional String) - Identifying key to use when retrieving the document

Returns: Boolean

Description: Generates a summary report for the HL7 segment strSegmentName (if it exists in the vendor definition opened in the EasyHL7Vendor property). If passed the report will be added to the report cache with the key CacheID. This means that subsequent calls to this method with the same CacheID will simply retrieve the report from the report cache.
