Transformation Script Toolbar
NEW in version 1.6! You can now control the order in which your transformation instructions are executed allowing you to "chain" macros together. Consider the following simple transformation script example:

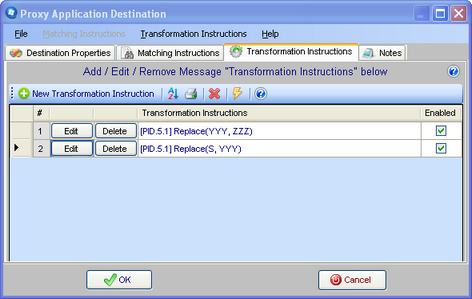

Transformation Tab in a Destination Window
In the screen-shot above we are using the Replace() instruction to modify some values in the PID Segment, Field 5, Component 1 (The Patient Surname). The execution order of the 2 instructions is shown in the column with header #. The instructions will attempt to do the following:
1.FIRST: If the surname contains the string "YYY" (not case sensitive), it will be replaced with the string "ZZZ". So if the surname is the value "Smith" after this macro executes the value will remain unchanged.
2.SECOND: If the surname contains the string "S" (not case sensitive), it will be replaced with the string "YYY". So if the surname is the value "Smith" after this macro executes the value will be changed to "YYYmith". And that will be final value for that component which will be delivered to the destination.
However, if you click the
Tbutton on the toolbar to change the order in which these Transformation Instructions are executed, you will get the "Change Execution Order Window" which you can use to swap the order of the two instructions, like so:

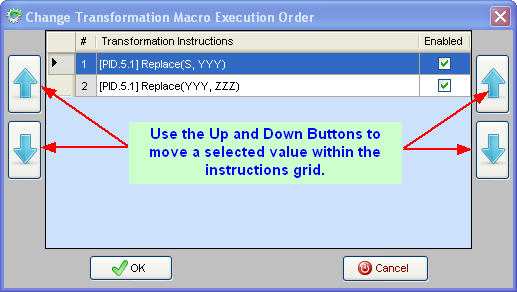

Change Execution Order Window
After saving this change our script now looks like the screen-shot below and will behave accordingly.

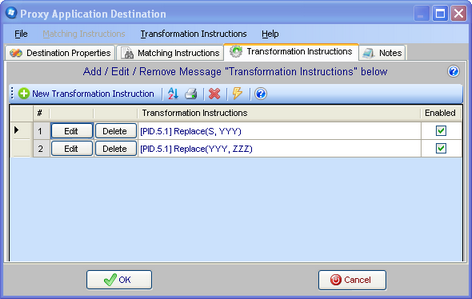

Transformation Tab in a Destination Window
If you notice we have now swapped the two Replace() instructions and NOW the instructions will attempt to do the following:
1.FIRST: If the surname contains the string "S" (not case sensitive), it will be replaced with the string "YYY". So if the surname is the value "Smith" after this macro executes the value will be changed to "YYYmith".
2.SECOND: If the surname contains the string "YYY" (not case sensitive), it will be replaced with the string "ZZZ". Since the original surname "Smith" was altered by first instruction and is now "YYYmith", after this macro executes the value will be changed AGAIN to "ZZZmith". And that will be final value for that component which will be delivered to the destination.
See Also: Transformation Instructions
