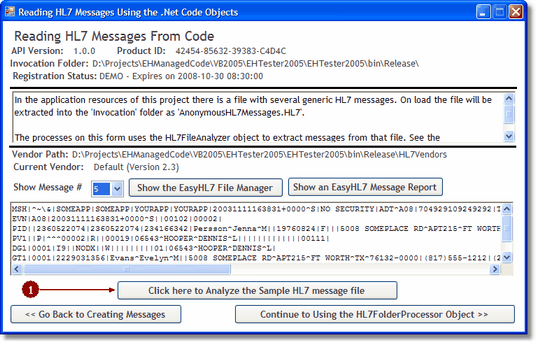

frmReadingMessages.vb

There are MANY more 'inbound' HL7 interfaces in the world than there are 'outbound'. As a result, more software developers are concerned with importing or reading HL7 data than are concerned with creating HL7 data. The EasyHL7 objects give you a great toolbox for reading HL7 message data, both from files and from system memory.

'EXAMPLE CODE FROM THE FORM

'oVendor and oAnalyzer declared PRIVATE

'and instantiated at form load

Private Sub btnCreateMessage_Click(ByVal sender As System.Object, _

ByVal e As System.EventArgs) Handles btnCreateMessage.Click

Try

Dim strFN As String

Dim enErrorType As EHL7_mc2005.HL7FileAnalyzer.EHFA_ErrorType

Dim i As Long

cmbMessages.Items.Clear()

cmbMessages.Visible = False

lblMessages.Visible = False

Button3.Visible = False

Button4.Visible = False

With oVendor

strFN = .EasyInstallationFolder & "AnonymousHL7Messages.HL7"

If Not IsFile(strFN) Then

MsgBox("The sample file AnonymousHL7Messages.HL7 not found in the invocation folder")

Exit Sub

End If

MouseON()

enErrorType = oAnalyzer.AnalyzeHL7File(strFN)

If enErrorType <> EHL7_mc2005.HL7FileAnalyzer.EHFA_ErrorType.EHFA_NoError Then

MouseOff()

MsgBox("An error occurred analyzing the file. Type = " & _

CStr(enErrorType), MsgBoxStyle.Critical, "Error")

Exit Sub

End If

MouseOff()

MsgBox("The analysis completed. The file contains " & oAnalyzer.FileMessageCount & " messages.")

End With

With oAnalyzer

For i = 1 To .FileMessageCount

cmbMessages.Items.Add(CStr(i))

End With

If cmbMessages.Items.Count > 0 Then

cmbMessages.Visible = True

lblMessages.Visible = True

MsgBox("Select a message # in the listbox above to see the HL7 message!")

End If

Catch ex As Exception

MouseOff()

MsgBox(ex.ToString)

End Try

End Sub

'The Click on the combobox

Private Sub cmbMessages_SelectedIndexChanged(ByVal sender As System.Object, _

ByVal e As System.EventArgs) Handles cmbMessages.SelectedIndexChanged

Try

Dim myMsgPointer As EHL7_mc2005.HL7MsgFilePointer

Button3.Visible = False

Button4.Visible = False

With cmbMessages

If .Text.Length > 0 Then

With oAnalyzer

MouseON()

myMsgPointer = .GetHL7Message(CLng(cmbMessages.Text))

MouseOff()

'Set the TAG property in case the user edits the message

RichTextBox2.Tag = myMsgPointer.MessageText

RichTextBox2.Text = RichTextBox2.Tag

Button3.Visible = True

Button4.Visible = True

End With

End If

End With

Catch ex As Exception

MouseOff()

End Try

End Sub
