Object: EHL7Interface.eUtilities
FileName: EHL7Interface.dll
Method
Name: ShowElementProperties()
Parameters:
1. SegmentName (string) identifying which segment to display field elements for
2. nElementNumber (long default = 1) which element to display on load.
Returns: Boolean

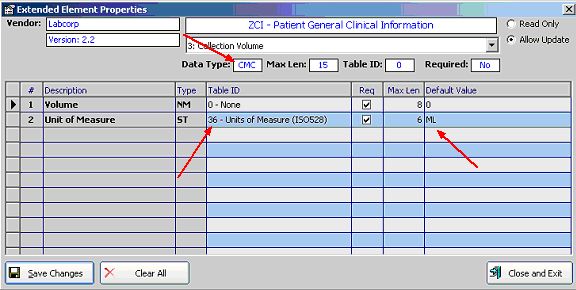

Description: Shows the built-in EasyHL7 Extended element properties window for the selected vendor, segment and optional nElementNumber. You must set the VendorID property (and if necessary, the VendorPath property) before calling this method.
In the file manager window and profiles window you can also access all of the definition editing functions by clicking on the 'Hot Spots' in the data section of an open HL7 file.
Example:
Private Sub ViewSegmentElements(strVendorID As String)
Dim myInterfaceObj As New EHL7Interface.eUtilities
If myInterfaceObj.SetUpComplete Then
myInterfaceObj.VendorID = strVendorID
If Not myInterfaceObj.ShowElementProperties("ZCI", 3) Then
Msgbox myInterfaceObj.LastError
End If
Else
myInterfaceObj.ShowConfiguration()
If Not myInterfaceObj.SetUpComplete Then
Msgbox "Try again later"
'Now get out and exit program
End If
End If
End Sub
