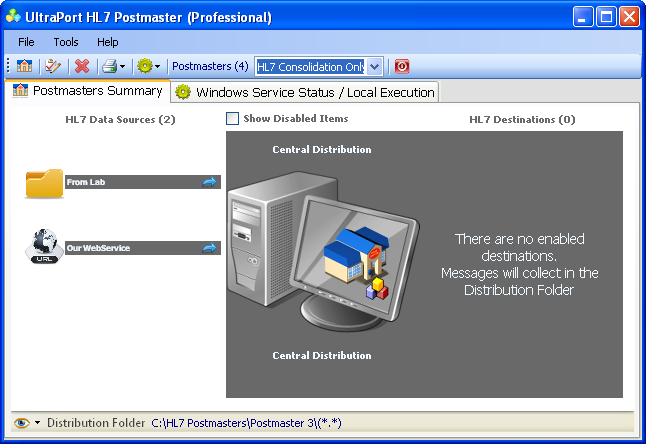

The UltraPort HL7 Postmaster is designed to help the user (you) maximize the potential of their HL7 interfaces. It's primarily used to intelligently disseminate HL7 messages to a variety of different types of destinations. Remember that the UltraPort HL7 Postmaster can be used 3 different ways:

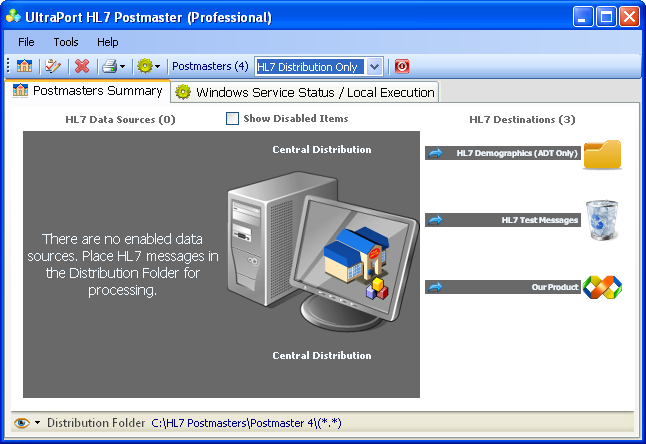

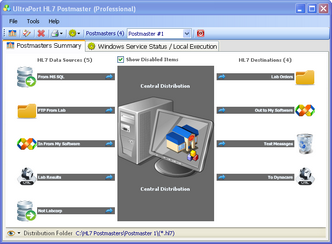

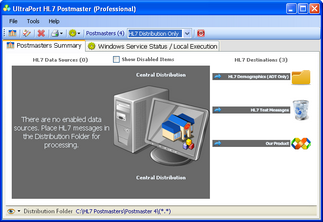

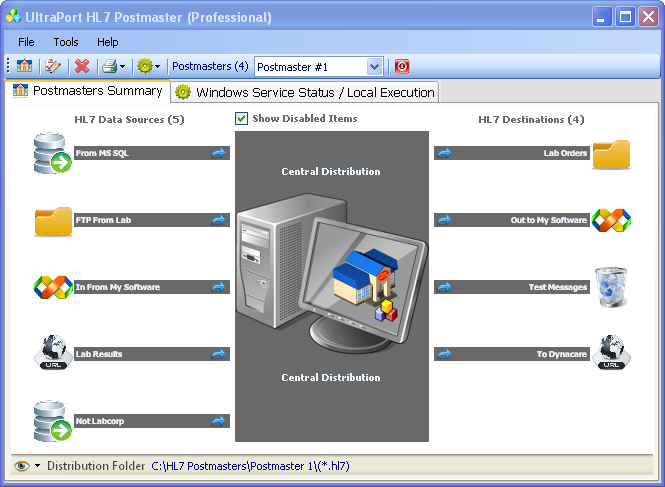

 Click to zoom 2. JUST as an HL7 Message Distribution Engine. Wherein some HL7 source places HL7 messages directly into the Central Distribution folder and the Postmaster then intelligently delivers those messages to one or many destinations for final processing. Like so:  Click to zoom 3. As BOTH Simultaneously. Wherein the HL7 Postmaster has both Data Sources which are used to collect HL7 messages and consolidate them into the Central Distribution folder AND Postmaster Destinations to which the software will deliver HL7 messages from the Central Distribution folder. Like so:  Click to zoom |
Different types of HL7 Postmaster Destinations |
|
File System Folders. The most common type of destination is simply a folder on the MS Windows file system. HL7 messages are delivered to a folder (selectively if you use matching instructions) where some other process then picks them up (like ANY HL7 compliant program or the UltraPort Listener, Router, SQL Schema Engine, or even another HL7 Postmaster). |
|
Rubbish Bins. Many times the "problem" with an HL7 interface is TMI (too much information). The HL7 producer creates HL7 messages for everything and everybody and for every reason and can't stop themselves. When all that YOU want are certain types of HL7 messages. That's where a Rubbish Bin destination comes in to play. They are a "special" type of destination whose job is to "eat" unwanted HL7 messages to prevent them from moving forward. See Rubbish Bins |
|
|
Coming in Version 2.5!
HL7 Documents. Use an HL7 Documents Destination to create human readable documents in multiple formats (Browser Independent HTML, PDF, etc) from your HL7 messages. |
Your Web Service. Yes we can! Use a Web Service Destination to send HL7 messages directly from an HL7 Postmaster to YOUR web-server over a secure internet connection.
|
|
UltraPort HL7 TCP/IP Router. If you own the UltraPort HL7 TCP/IP Router you can use the UltraPort HL7 Postmaster to extend it's functionality by having a Postmaster send HL7 messages to a Router running on a different server which then sends the HL7 message out over TCP/IP to its final destination. See UltraPort Router. |
|
UltraPort Postmaster Proxy Application. The UltraPort HL7 Postmaster has a FREE software API for programmers using Microsoft Visual Studio™. In only a few lines of code you can give YOUR application the ability to receive HL7 messages sent by Postmaster Proxy Destination. Your application can be running on the same computer or on any computer within the same LAN/WAN as the Postmaster. See Proxy Destinations. For more information about Postmaster proxy applications in general see Proxy Applications. |
|
