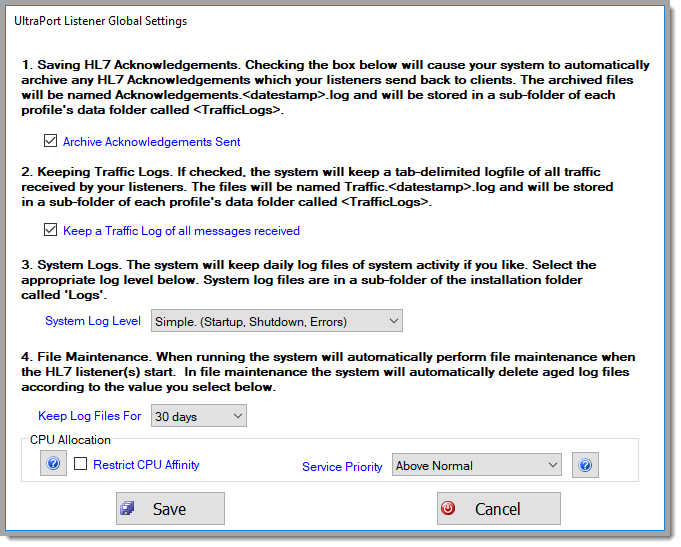

Global Settings

IMPORTANT: Setting #2 (Keeping Traffic Logs). Enabling this setting is HIGHLY recommended. If you DO NOT enable it you will lose some important functionality of the UltraPort Listener Monitor application.

TRAFFIC LOGS (item 2 in the settings window). An exciting feature of the UltraPort Listener is the ability to maintain daily tab delimited log files which pull up very nicely in MicroSoft Excel

CPU Allocation is a new section in version 5.2.4. and allows users a small measure of control over how the UltraPort Listener MS Windows services use the CPU cores and how the OS prioritizes the service(s) in relation to other processes/programs running on the system. IMPORTANT: The CPU Allocation settings ONLY affect the MS Windows services, so if you are running in LOCAL mode with a DEMO or a Developer license these settings have no impact.

Disclaimer: The UltraPort Listener services are largely event driven and generally are NOT huge consumers of your system resources (IE Memory, Disk, and CPU) so these settings would typically be ignored. However, if you think you may experience very high OVERALL traffic (say in excess of 350,000 messages per hour sustained), OR you are running many UltraPort Listener profiles which all are receiving sustained traffic, OR if your UltraPort Listener is running on a very busy system, then you may want to work with these settings if your trading partners start to report problems connecting or receiving timely HL7 Acknowledgments.

Restrict CPU Affinity

This setting, if checked, will restrict the services so that they only use certain CPUs on multi-CPU systems. NOTE: For single core CPU systems this setting has no effect. If the system has 2 CPUs the services will only use CPU #2. If a system has 4 CPUs the services will only use CPUs #3 and #4. For systems with 8 or more CPUs the services will only use the LAST 4 CPUs (on a 32 CPU system the services would only use CPUs #29, #30, #31, and #32). As mentioned in the disclaimer above, since the UltraPort Listener is largely event driven, it is not a huge consumer of CPU resources typically.

Service Priority

Like a roomful of children, running processes/programs, cry for attention from the operating system when they are running which tries to give them attention fairly and equally. The vast majority of programs will be running will be running with a NORMAL priority which basically means "treat me just like everyone else" when I ask for resources. Some programs, Screen Savers for instance, run with an IDLE priority which means that they will not actually do anything unless the system is idle. If you are running many listener profiles and receiving sustained traffic you might want to increase the priority which the UltraPort Listener services run as. If you are receiving hundreds of thousands of HL7 messages per hour there are many different thread operations being conducted by the Listener services which will be crying for attention from the operating system. NOTE: Setting this value to other than NORMAL can mean that other processes can suffer.

What can I do to lessen the impact?

The best thing that you can do for your system if you are receiving high message traffic is to turn off your virus scanner for your HL7 data folders. Your virus scanner will be monitoring everything written to or read from your HDD. This can mean that your Virus scanner uses up a lot of CPU looking at HL7 messages being written to disk using the UltraPort Listener as well as traffic logs, ACK archives, etc.

IMPORTANT: It is impossible for an HL7 message data file to contain an active virus, they are only TEXT files. Thus, it's IMPOSSIBLE to send a VIRUS to a computer through the UltraPort HL7 Listener. Knowing this, it is safe to add your HL7 data folder(s) in your Listener profiles as "exceptions" for your virus scanner.
