The Main Window

PreviousNext

See all of your listeners in the main window!

(c) 2007-2010 Hermetech International Ltd.

The main window will show you all of your configured HL7 listener profiles as well as your product license information (Demo or Live). After your system starts for the first time you'll want to create at least 1 listener profile.

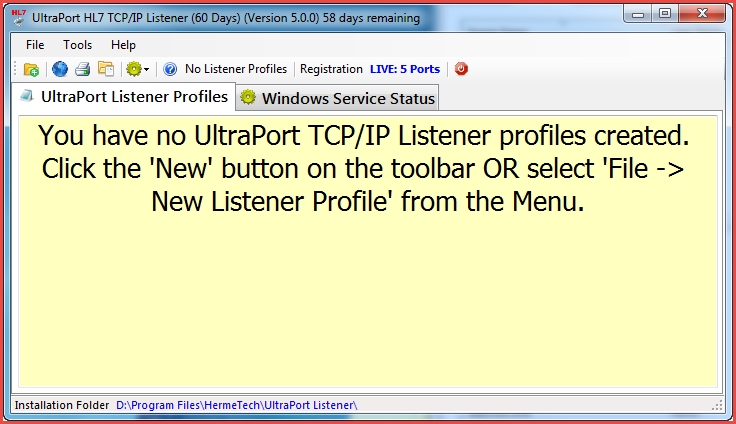

Initial startup. Demo license with no listeners configured

Initial startup. Demo license with no listeners configured



From the main window you can also open the global settings window, run system reports, validate your profiles, access online help and download some other useful tools from the HermeTech website like the free UltraPort Listener Service Monitor, the UltraPort Listener Proxy Toolkit for Microsoft Visual Studio.Net and the EasyHL7 HL7 Router simulator (very useful for testing your listener profiles). You can also check the status of the windows service.

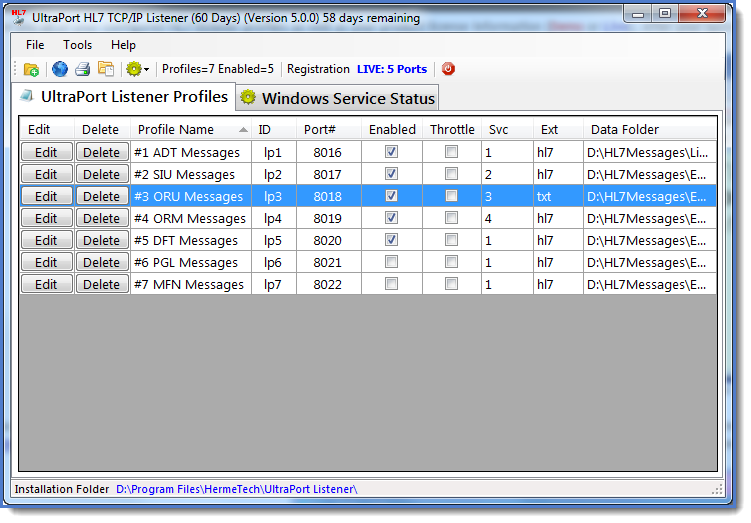

The Main Window. Activated License for 100 ports

The Main Window. Activated License for 100 ports

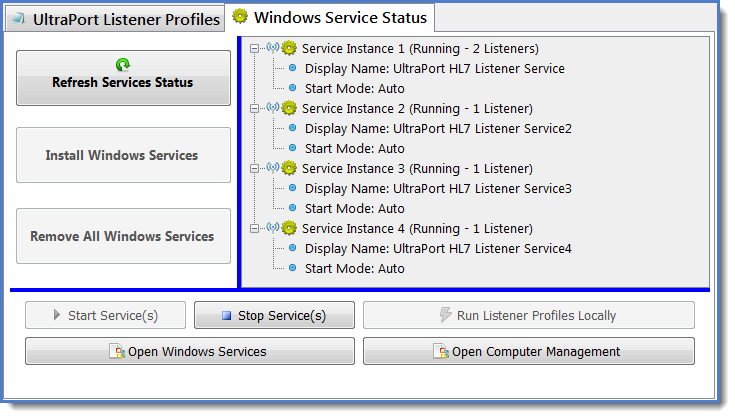

The Service Status Tab



The Service Status Tab

The Service Status Tab







Toolbar Buttons



Create a new listener profile.

Edit the selected listener profile.

Create a new listener profile by cloning the selected profile.

Check your listener profiles for errors.

(Drop Down Menu) Start Service / Stop Service / Open Services / Run Locally.

View / Print a system report

Delete the selected listener profile

Opens this online help.
