Namespace: EasyHL7MC40_UI
Object Name: UserInterfaces
Constructor: New(objVendor As EasyHL7MC40.HL7Vendor)
Declaration: Private MyHL7UI As EasyHL7MC40_UI.UserInterfaces
Creation: MyHL7UI = New EasyHL7MC40_UI.UserInterfaces(MyVendorObject)

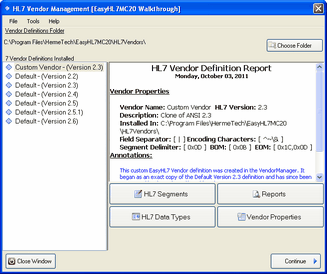

 EasyHL7 Vendor Manager
Creating MS Windows Forms applications using the EasyHL7MC40 objects just got easier. We give you several handy dialogs for doing common tasks like choosing an EasyHL7 Vendor, setting the VendorPath etc. as well as access to an entire sub-system for managing vendor definitions (see the Vendor Manager) for tasks like creating or editing existing HL7 vendors, importing and exporting HL7 vendor definitions, as well as built-in HL7 reports, etc.
Properties
Name: AboutMessage
Data Type: String (Read Write)
Description: [Reserved for future use]
|
Name: TopMost
Data Type: Boolean (Read Write)
Description: If True then dialogs will be "always on top"
|
Name: HelpURL
Data Type: String (Read Write)
Description: Either a web URL or a full path/name of a document. If populated then
different dialogs will display an "Online Help" menu option which will attempt to open the HelpURL.
Additional Information: Vendor Manager
|
Name: UpdatesWereMade
Data Type: Boolean (Read Only)
Description: After a user exits from the Vendor Manager this property will indicate whether or not the user made any changes to vendor definitions. Possibly to use as a trigger to determine if your objects need to be refreshed.
See Also: Vendor Manager
|
Name: IsError
Data Type: Boolean (Read Only)
Description: Is True if the object encountered an error.
See Also: LastError
|
Name: VendorAccess
Data Type: EasyHL7MC40_UI.TWHL7VendorAccess
Description: You can set different user access restrictions before displaying dialogs to your users.
Additional Information: Using Vendor Access
|
Name: LastError
Data Type: String (Read Only)
Description: Will contain the last error message encountered by the object
See Also: IsError
|
Name: VendorPath
Data Type: String (Read Write)
Description: The path to the folder where EasyHL7 Vendor definitions are installed.
|
Name: ProductName
Data Type: String (Read Write)
Description: The name of your product. If passed it will be displayed in most dialog window captions and in system reports.
See Also: Vendor Reports, Vendor Manager
|
Name: Website
Data Type: String (Read Write)
Description: The URL for your company or product website. If passed it will be displayed in dialog Help menus as an option to "Visit Our Website".
See Also: Vendor Reports, Vendor Manager
|
Methods
Name: ChooseHL7DataType
Returns: UISelection Object
Description: Select an HL7 data type defined and stored in the HL7Vendor definition
Additional Information: Other Dialogs, UISelection Object
|
Name: ShowMessageReport
Returns: Boolean
Description: Displays the built-in reporting system for a particular HL7 message
See Also: Vendor Reports
|
Name: ChooseHL7Table
Returns: UISelection Object
Description: Select an HL7 internal table defined and stored in the HL7Vendor definition
Additional Information: Other Dialogs, UISelection Object
|
Name: ShowRTFReport
Returns: Boolean
Description: A utility function which will display a Richtext document in a report window.
See Also: Vendor Reports
|
Name: ChooseVendor
Returns: UISelection Object
Description: Select an HL7 Vendor definition stored in the VendorPath.
Additional Information: Other Dialogs, UISelection Object
|
Name: ShowTextReport
Returns: Boolean
Description: A utility function which will display an Ascii Text (String) document in a report window.
See Also: Vendor Reports
|
Name: ClearErrors
Returns: N/A -nothing
Descriptions: Clears the error state of the object.
See Also: IsError, LastError in the Properties above
|
Name: ShowVendorManager
Returns: Windows.Forms.DialogResult
Description: This dialog allows the user to create, view and edit the HL7 Vendor definitions.
Additional Information: Vendor Manager, Using Vendor Access
|
Name: ManageHL7DataTypes
Returns: Windows.Forms.DialogResult
Description: This dialog allows the user to view and edit HL7 Data types stored in the HL7Vendor definition.
Additional Information: Other Dialogs
|
Name: ShowVendorPathSelection
Returns: Windows.Forms.DialogResult
Description: This dialog allows the user to choose a new VendorPath.
See Also: Other Dialogs
|
Name: ManageHL7Tables
Returns: Windows.Forms.DialogResult
Description: This dialog allows the user to view and edit HL7 internal tables stored in the HL7Vendor definition.
Additional Information: Other Dialogs
|
Name: ShowVendorReport
Returns: Boolean
Description: Displays the built-in reporting system for a particular HL7 Vendor definition
See Also: Vendor Reports
|
|
