Importing and Exporting HL7

PreviousNext

Import from or Export to files or folders

(c) 2011 Hermetech International Ltd.

To import HL7 messages into your message store click the "Import" button on the main toolbar

Creating MessagesOpen a fileSave to diskImporting and Exporting HL7 messagesSearching for HL7 messagesSearching for Messages in SQL ServerClears the message storeChoosing Different HL7 VersionsEditing MessagesHL7 ReportsNotepad SettingsTCP/IP TransmissionExit the notepadPrint the selected message

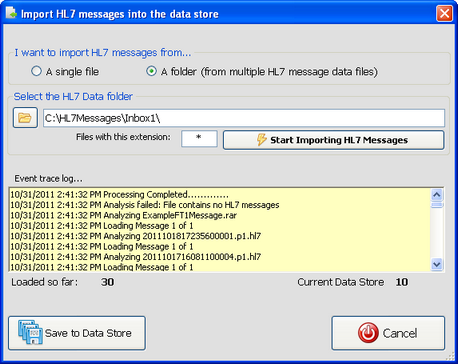

The Import Messages Window

The Import Messages Window



In the Import Window, select whether you wish to import HL7 messages from a single file or from a folder containing multiple files. Then either select the input file (if from a file) or the input folder and file extension (if from a folder) and click 'Start Importing HL7 Messages'.



To export HL7 messages from your message store click the "Export" button on the main toolbar

Creating MessagesOpen a fileSave to diskImporting and Exporting HL7 messagesSearching for HL7 messagesSearching for Messages in SQL ServerClears the message storeChoosing Different HL7 VersionsEditing MessagesHL7 ReportsNotepad SettingsTCP/IP TransmissionExit the notepadPrint the selected message

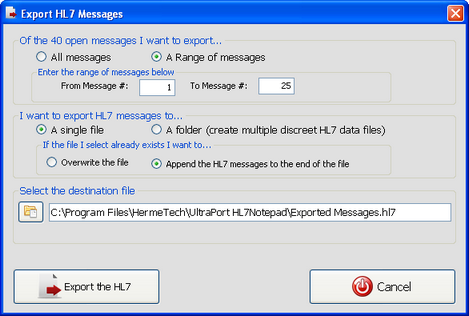

The Export Messages Window

The Export Messages Window



In the Export window select whether you want to export all of the messages in your message store or only a range of them. Then select whether you want to create a single file or to create multiple message files. When you're done click 'Export the HL7' and you're done.
